Confocal microscope


Contact point for usage through "Jumps" program

Imaging Section (IMG-request*oist.jp) (replace* by @)

Confocal microscope
Maker: Zeiss
Model: LSM 780

Features:

Multi-color imaging, Large imaging (stitching), Z stack, Live and time-lapse imaging (stage top incubator), Spectral imaging (unmixing), FCS (Fluorescence Correlation Spectroscopy), Photon Counting.

Laser: 405, 458, 488, 514, 561, 633

Objective: 10x/0.45 Plan-Apo WD 2.1, 20x/0.80 Plan-Apo WD 0.55, 40x/1.40 Oil Plan-Apo WD 0.13, 63x/1.46 α-Plan-Apo WD 0.10, 100x/1.46 α-Plan-Apo WD 0.10, 5x/0.25 Flur WD 12.5

Detector: x2 MA PMT, x1 GaAsp PMT (Spectral imaging), x1 T-PMT

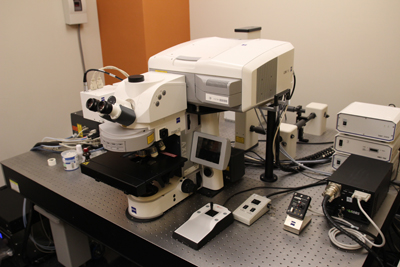

Confocal microscope
Maker: Zeiss
Model: LSM 710 NLO(Multiphoton)

Features:

Multi-color imaging, Z stack, Large imaging, Spectral imaging (unmixing), Deep imaging, Time-lapse, GaAsP NDD unit, Water dipping lens.

Laser: 458, 488, 514, 543, 633, 690 - 1064

Objective: 10x/0.45 Plan Apo WD 2.1, 20x/0.4 LD Plan-Neofluar WD 8.4, 40x/0.95 (Dry) Plan-Apo WD 0.25, 63x/1.46 Oil α-Plan-Apo WD 0.10, 20x/0.5 W N-Achroplan WD 2.6, 40x/1.0 W Plan-Apo WD 2.3

Detector: x3 MA PMT (1 for Spectral imaging), x1 T-PMT, x3 NDD (Center 420-475nm, Right 500-550nm, Left 565-610nm BP filter)

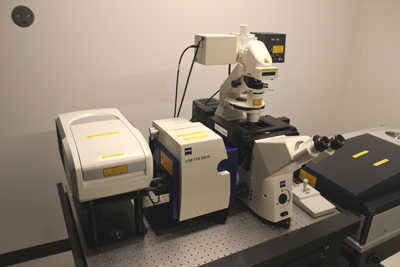

Confocal microscope
Maker: Zeiss
Model: LSM 510 META ConfoCor3

Features:

Multi-color imaging, Z stack, Spectrum imaging (unmixing), Time-lapse, Large image (stitching), Fluorescence Correlation Spectroscopy (FCS), Fluorescence Cross-Correlation Spectroscopy (FCCS)

Laser: 405, 458, 477, 488, 514, 561, 633

Objective: 10x/0.3 EC Plan-Neofluar20x/0.8 Plan-Apo, 40x/1.2 W C-Apochromat63x/1.4 Oil Plan-Apo, 40x/0.75 EC Plan-Neofluar, 5x/0.16 Plan-Apo

Detector: x3 MA PMT (1 for Spectra imaging), x2 APD, x1 T-PMT

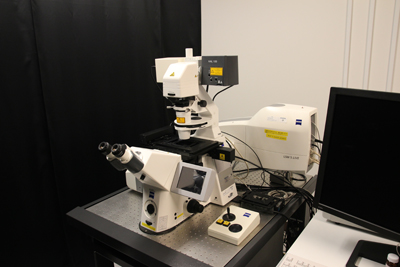

Confocal microscope
Maker: Zeiss
Model: LSM 5 Live DuoScan

Features:

Multi-color imaging, Z stack, Fast imaging, Live and time-lapse imaging, Large image (stitching), Stage piezo

Laser: 405 (DuoScan), 440, 488, 561

Objective: 10x/0.45 Plan-Apo, 40x/1.20 W C-Apo, 63x/1.20 C-Apo

Detector: x2 CCD

Confocal microscope
Maker: Nikon
Model: A1R

Features:

Multi-color imaging, Z stack, Fast imaging (resonant scanner and piezo stage), Time-lapse (stage top incubator), Autofocus, Large imaging (stitching), Spectral imaging (unmixing). 2D and 3 D deconvolution

Laser: 405, 445, 488, 514, 561, 594, 640

Objective: 4x/0.20 PlanApoλ, 10x/0.45 PlanApoλ, 20x/0.75 PlanApoVC, 40x/0.95 PlanApoλ 60x/1.49 Oil Apo TIRF,10x/0.50 Glyc PlanApo (Index 1.33-1.51), 20x/0.95 WI λS ApoLWD, 40x/1.15 WI λS ApoLWD, 60x/1.27 WI Plan Apo IR, 100x/1.49 Oil Apo TIRF λ.

Detector: x2 MA PMT, x2 GaAsP PMT, x2 GaAsP PMT (variable, spectrum imaging)

Confocal microscope
Maker: Nikon
Model: A1R Auto-tracking

Features:

Multi-color imaging, Z stack, Fast imaging, Time-lapse, Auto tacking using IR camera and motorized xy stage

Laser: 403, 445, 488, 561

Objective: 4x/0.20 S Fluor, 10x/0.30 Plan Fluor, 20x/0.75 Plan Apo, 40x/0.95 Plan Apo, 40x/1.25 W Apo

Detector: x2 MA PMT, x2 GaAsP PMT

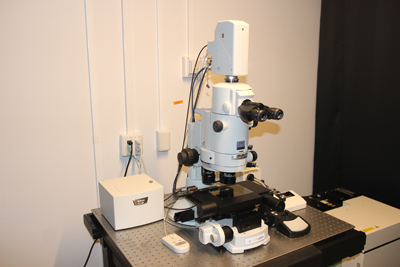

Confocal microscope
Maker: Nikon
Model: C2-Az100

Features:

Multi-color imaging, Z stack, Large Image (stitching), Time-lapse

Laser: 488, 561, 637

Objective: 1x/0.1 AZ Plan Apo, 2x/0.2 AZ Plan Fluor, 5x/0.5 AZ Plan Fluor

Detector: x3 MA PMT, x1 T-PMT
